Discover the superior quality and performance of the Nord 100LP/4 BRE40 TW with Impexron GMBH in Germany . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The 100LP/4 BRE40 TW is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of 100LP/4 BRE40 TW :
At Impexron GMBH , we offer the 100LP/4 BRE40 TW at competitive prices and with the fastest delivery times across Germany . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Impexron GMBH ?
Get Your Quote Today! Ready to enhance your operations with the 100LP/4 BRE40 TW ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Nord products, Impexron GMBH is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
BRAND | Nord |
Product | 100LP/4 BRE40 TW |
Internal code | IMP4989539 |

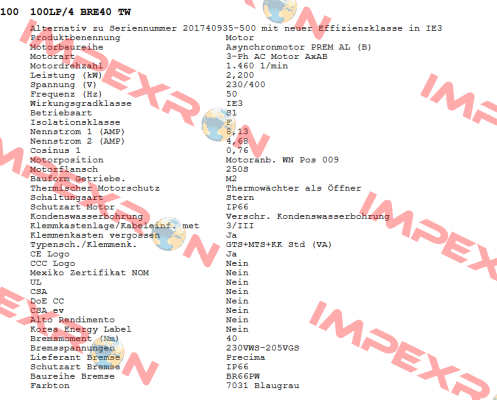

Technical specification | Alternative to serial number 201740935-500 with new efficiency class in IE3 Product name motor PREM AL (B) asynchronous motor series Motor type 3-Ph AC motor AxAB Engine speed 1.460 rpm Power (kW) 2,200 Voltage (V) 230/400 Frequency (Hz) 50 Efficiency class IE3 S1 operating mode Insulation class F Rated current 1 (AMP) 8.13 Rated current 2 (AMP) 4.68 Cosine 1 0.76 Motor position Motor mount WN Pos 009 250S motor flange Gearbox design. M2 Thermal motor protection Thermal monitor as an opener Circuit type star IP66 motor protection class Condensate borehole screhr. condensate drilling Terminal box/cable entry with 3/III Terminal box sealed Yes Typensch. /Terminals GTS+MTS+KK Std (VA) CE logo Yes CCC logo No Mexico NOM certificate No UL No CSA No DoE CC No CSA ev No Alto Rendimento No Korea Energy Label No Braking torque (Nm) 40 230VWS-205VGS brake voltages Precima brake supplier IP66 brake protection class BR66PW Brake Series Color 7031 Blue Gray Paint type solid color Basic painting instruction (2) |
